Fan Coil Unit

General Specification

Fan Coil Units are designed specifically for trouble free and feliable operation and are quietest in its category. Low height of the unit makes them ideal for low ceiling areas. Units are light in weight, which helps for ease in installation.

Configuration

Units are blow through type consisting of blower deck, coil deck, insulated drain pan and filter. For rigid and robust construction entire unit casing is manufactured with heavy gauge galvanized sheets.

Coil Deck

Using the most advanced technology by computerized selection and designing of coil for most efficient operation / heat transfer. Coil deck consists of multi rows deep chilled water / D.X. coil. Coils are made from seamless copper tube tightly bonded to equally spaced aluminium fins for better heat transfer. Coil deck is insulated from inside to prevent condensation.

Blower Deck

Blower deck is attached to coil deck. It consists of forward curved double inlet double width type centrifugal blower / fans. These fans are statically and dynamically balanced for silent running operation. Blowers are mounted on extended shaft of the motor and can be removed easily.

Drain Pan

Independently, removable drain pan made from heavy gauge galvanized sheets with inside surface painted and outside surface is insulated to avoid condensation. Drain pan is designed as extended type to accommodate coil ends connection, valves etc. Sandwich-insulated drain pan and S.S. drain pan are also available as optional.

Standard Fan Coil Unit

Standard Fan Coil Unit

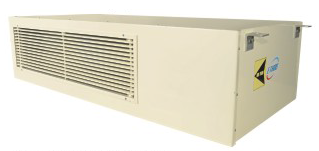

Decorative Vertical Exposed

Double Skin Fan Coil Unit
